Covered walkways for schools, hospitals and business sites
Canopies & Shelters Ltd designs, manufactures and installs covered walkways for schools, hospitals, industrial sites and retail parks across the UK, giving people a dry, sheltered route between buildings and entrances.
- Powder-coated steel frame, any RAL colour
- 5mm / 8mm polycarbonate roof, 99% UV filter
- Engineered to BS EN 1991 wind and snow loading
- Freestanding, cantilever or building-mounted
What is a covered walkway?
A covered walkway is a permanent, engineered structure that shelters a pedestrian route between buildings, car parks and entrances, keeping people dry as they move around a site. It is also called a walkway canopy, a canopy walkway, a linkway, a covered link, a linked canopy, a sheltered walkway or a colonnade.
We build each run to the length and layout of the site, so a single walkway can link a school reception to its classroom blocks, connect a hospital drop-off to the main doors, or carry staff dry from a car park to a commercial canopy entrance. Every walkway is made to measure for its route.
Which covered walkway is best?
The best covered walkway is the form that suits the route: a freestanding run on its own posts across open ground, a cantilever walkway that carries the roof from a single line of columns to keep one side clear, or a run fixed to an existing building along a wall. Mono-pitch and curved roof profiles then set the drainage fall, and enclosed or part-glazed sides add shelter on routes exposed to driving rain.
For a school linking a reception to classroom blocks we usually specify a steel mono-pitch run in clear polycarbonate; for a hospital drop-off or an exposed retail-park route, a part-glazed or enclosed side adds real shelter from wind-driven rain. Where the walkway also needs to double as a covered entrance canopy at one end, we design the two as one specification.
Canopy forms and roof profiles compared
| Form | How it is built | Drainage | Access below | Best suited to |
|---|---|---|---|---|
| Mono-pitch | A single-slope roof on a steel frame | Falls to one side | Sits close to a wall or along a route | Walls, walkways and long building elevations |
| Curved (barrel-vault) | A curved roof on curved steel rafters | Sheds water off the curve to the eaves | More projection and headroom | Entrances, social spaces, cycle and buggy shelters |
| Cantilever | Roof carried from one line of columns or a wall fixing | Set by the roof profile | No front posts, so the space below stays clear | Entrances, drop-offs and play areas where columns would block access |
| Freestanding | Stands on its own posts and footings | Set by the roof profile | Posts on both sides; can stand anywhere on the site | Open ground, courts and routes away from buildings |
| Wall-mounted (lean-to) | One edge fixes to an existing wall | Falls away from the wall | Fewer posts, as the wall carries one edge | Play areas and nursery gardens beside a building |
Forms combine: a canopy can be a wall-mounted mono-pitch or a cantilevered curved roof. We set the profile, the drainage fall and the fixing at survey.
What is a covered walkway made of?
A covered walkway is made of a powder-coated steel frame carrying a 5mm or 8mm water-resistant polycarbonate roof with a 99% UV filter, held in a glazing system with a double rubber bead seal. A tensioned-fabric roof is the alternative where a softer roofline suits the setting.
Powder-coated steel frame
Steel frames finished to any RAL colour to match existing buildings or a house style, each run engineered for its own wind and snow loading to BS EN 1991. Aluminium is used where a lighter, corrosion-resistant structure suits an exposed site.
UV-filtering polycarbonate roof
5mm or 8mm water-resistant polycarbonate in clear, opal or tinted sheet, filtering 99% of UV and sealed with a double rubber bead to keep the run watertight.
Linked and cantilever spans
Freestanding, cantilever, mono-pitch and curved profiles, set out to link the buildings and entrances on your site, with enclosed or part-glazed sides where a route is exposed.
Fixed to buildings or freestanding
Runs fix to a sound wall or slab where the route passes a building, or stand on their own posts and pad footings across open ground, with drainage set out at survey stage.
Roof materials compared
| Roof material | Daylight and UV | Weather cover | Span | Typical life |
|---|---|---|---|---|
| Polycarbonate sheet, 5mm or 8mm | Clear, opal or tinted; filters around 99% of UV | Water-resistant, sealed with a double rubber bead | Carried bay by bay on the steel frame | 20 to 30 years |
| PVC-coated polyester fabric | Translucent; gives shade and keeps the area bright | Weatherproof, tensioned to shed rain | Longer clear spans with few supports | 15 to 25 years |
| PTFE-coated glass fabric | Translucent, with a self-cleaning surface | Weatherproof, tensioned to shed rain | Larger or higher-profile spans | 25 to 35 years or more |
Typical lives are the figures given on our product pages. The steel frame usually outlasts the roof, and roof sheets or a membrane can be replaced without rebuilding it. We confirm the roof specification at survey.
How much does a covered walkway cost?
A covered walkway costs £450 to £700 per linear metre installed. These are indicative UK ranges to confirm at a site survey, not fixed prices, because the cost moves with the span, the height, the roof specification and whether the walkway fixes to existing buildings or needs new foundations.
Four things drive the figure per metre: the span and height (a taller, wider run needs more steel), the roof specification (polycarbonate, solid sheet or tensioned fabric, and whether the sides are open, part-glazed or enclosed), the fixing method (fixing to an existing building or a sound slab costs less than a freestanding run on new foundations), and the groundworks and access along the route. We quote every walkway after a survey and provide CAD drawings and a specification for your tender or business case.
| Covered walkway type | Indicative installed cost | Main cost drivers |
|---|---|---|
| Freestanding walkway | £450 to £700 per linear metre | span, height, new foundations |
| Building-fixed walkway | £450 to £650 per linear metre | fixing method, roof spec |
| Cantilever walkway | £500 to £700 per linear metre | column spacing, loading, span |
| Enclosed or part-glazed run | £550 to £700 per linear metre | glazing area, roof spec, sealing |
Indicative UK ranges to confirm at survey, installed and excluding any enabling works. Our work is quote-based; we do not sell fixed-price units.
Do covered walkways need planning permission?
A covered walkway usually needs planning permission and building-regulations approval, because a permanent structure on business, school or public premises is not covered by the domestic permitted-development rights that apply to a house.
A long run, a listed building, a conservation area or anything that changes an elevation typically needs a planning application, and a permanent walkway also needs building-regulations sign-off for structural loading. We supply the CAD drawings, structural calculations and specification your planning consultant or building-control officer needs, and we can advise early on what your project is likely to require.
What standards apply to covered walkways?
A covered walkway is engineered to the structural Eurocodes, principally BS EN 1991 for wind and snow loading, and installed to meet the Building Regulations for structural safety on a business, school or healthcare site. A specifier should expect load calculations, a specification and drawings for every run.
For each run we provide the load calculations, CAD drawings and specification a procurement team, specifier or building-control officer needs. Where a walkway links buildings on a school site, it is designed alongside our school canopies to the access and safety expectations of an education setting.
How are covered walkways installed?
Canopies & Shelters installs covered walkways with our own teams across England, Scotland and Wales in four stages: a site survey to set out the run and the drainage, a CAD design and specification for sign-off, UK manufacture of the frame and roof, then groundworks and the on-site build.
Where the route runs alongside or through an existing building, we can fix the walkway to a sound wall or slab and avoid new foundations along that section; where it crosses open ground it stands on its own posts and pad footings. Drainage falls are set out at survey stage so water runs off the roofline and away from doorways instead of pooling along the route. We programme the install around a working school, hospital or site to keep disruption low.
How long do covered walkways last?
A covered walkway lasts 20 to 30 years or more. Along a run, the parts that wear are the roof sheets, the double rubber bead seals and the gutters, and each can be replaced bay by bay while the powder-coated steel frame stays in place.
Routine care is a periodic clean and a check of the fixings and gutters along the run, and polycarbonate holds its clarity for many years under its 99% UV filter. We also re-clad and refurbish existing walkways.
What are the benefits of a covered walkway?
A covered walkway keeps people dry and safe on a route that would otherwise cross open ground, linking buildings, car parks and entrances into one all-weather site.
For a school it links reception, classroom blocks and dining halls without pupils crossing open ground in the rain; for a hospital it carries patients and visitors dry from a drop-off to the main doors; for an industrial or retail site it moves staff and visitors between buildings and car parks under cover. Because the structure is engineered and fixed, it adds a permanent, low-maintenance asset to the site.

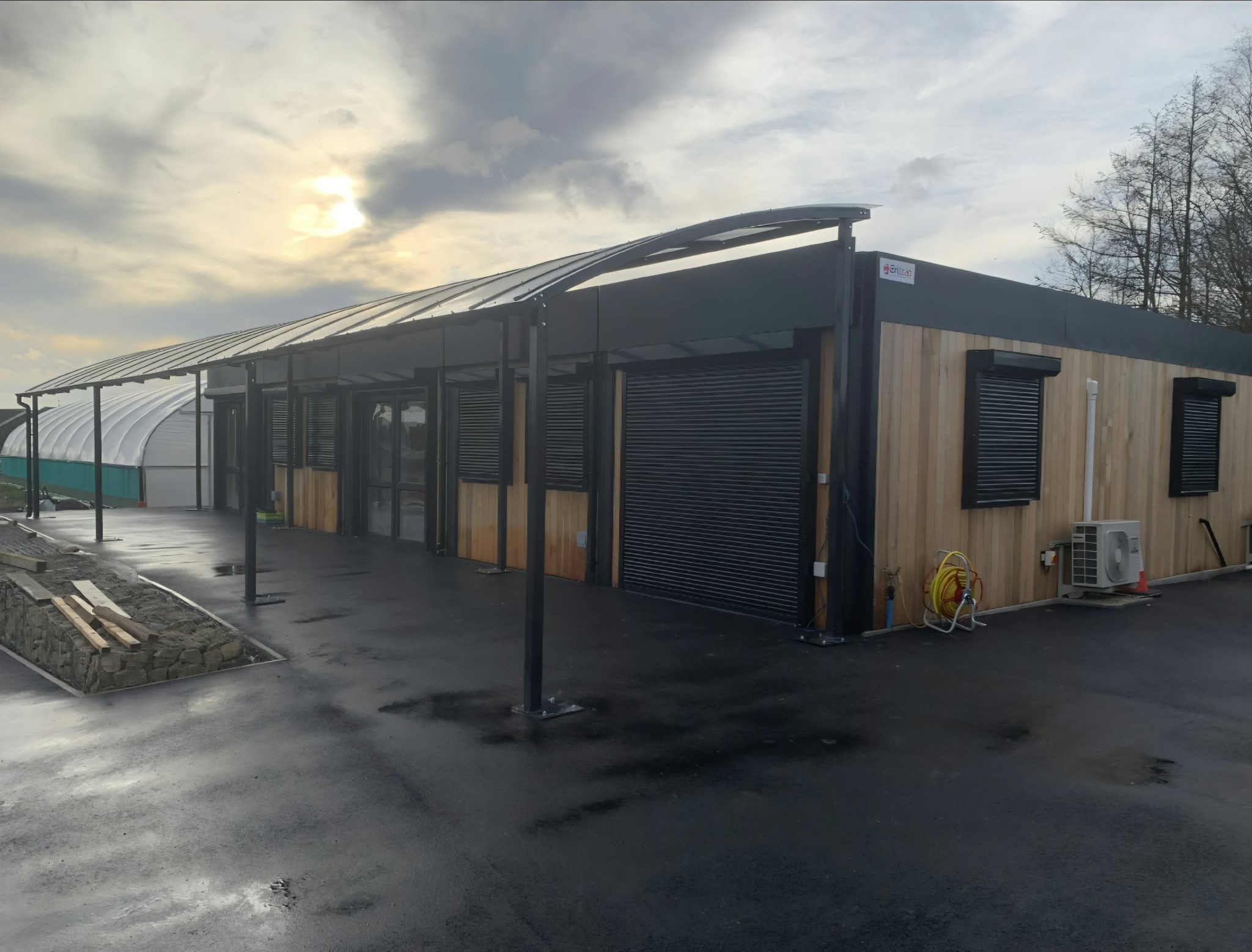

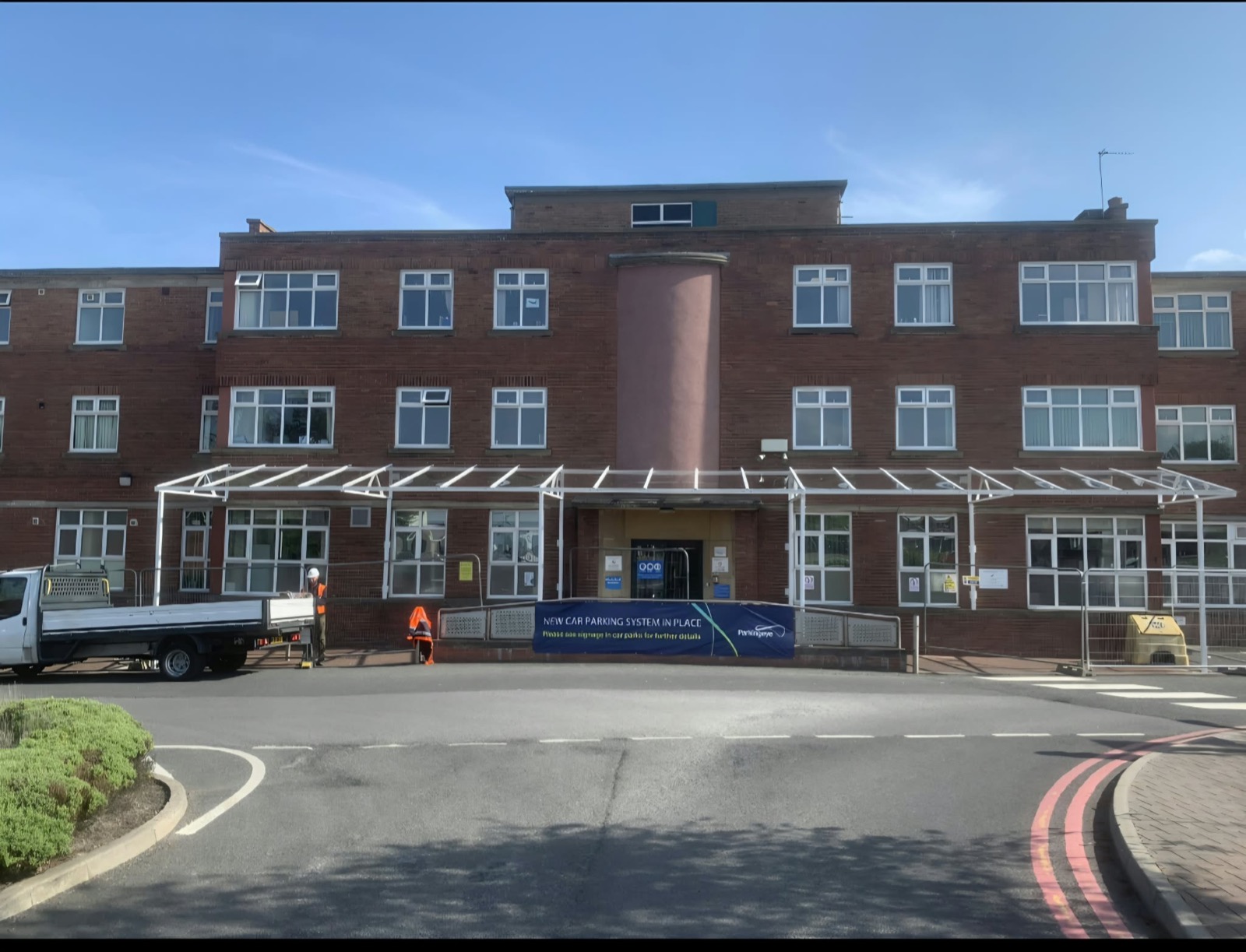

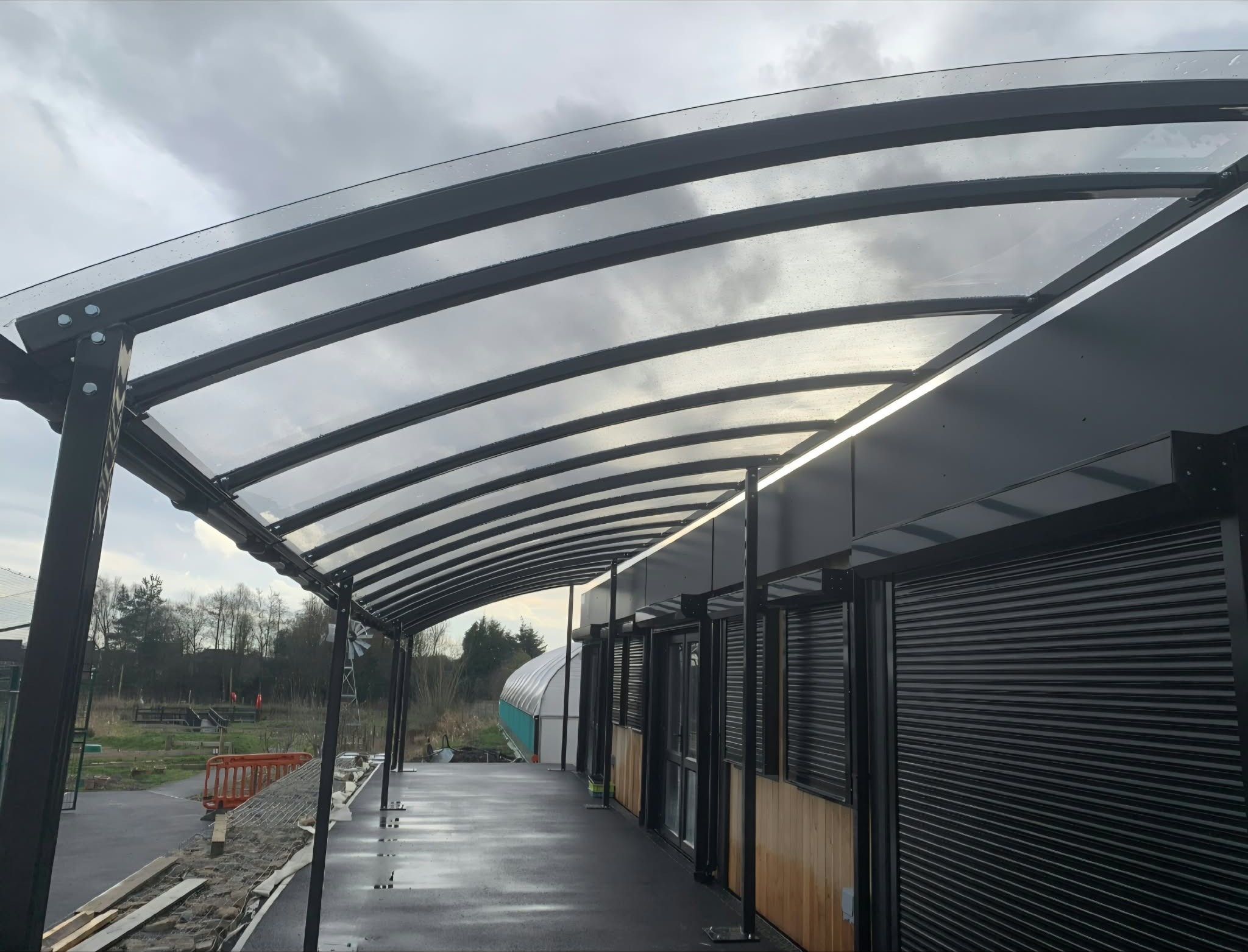

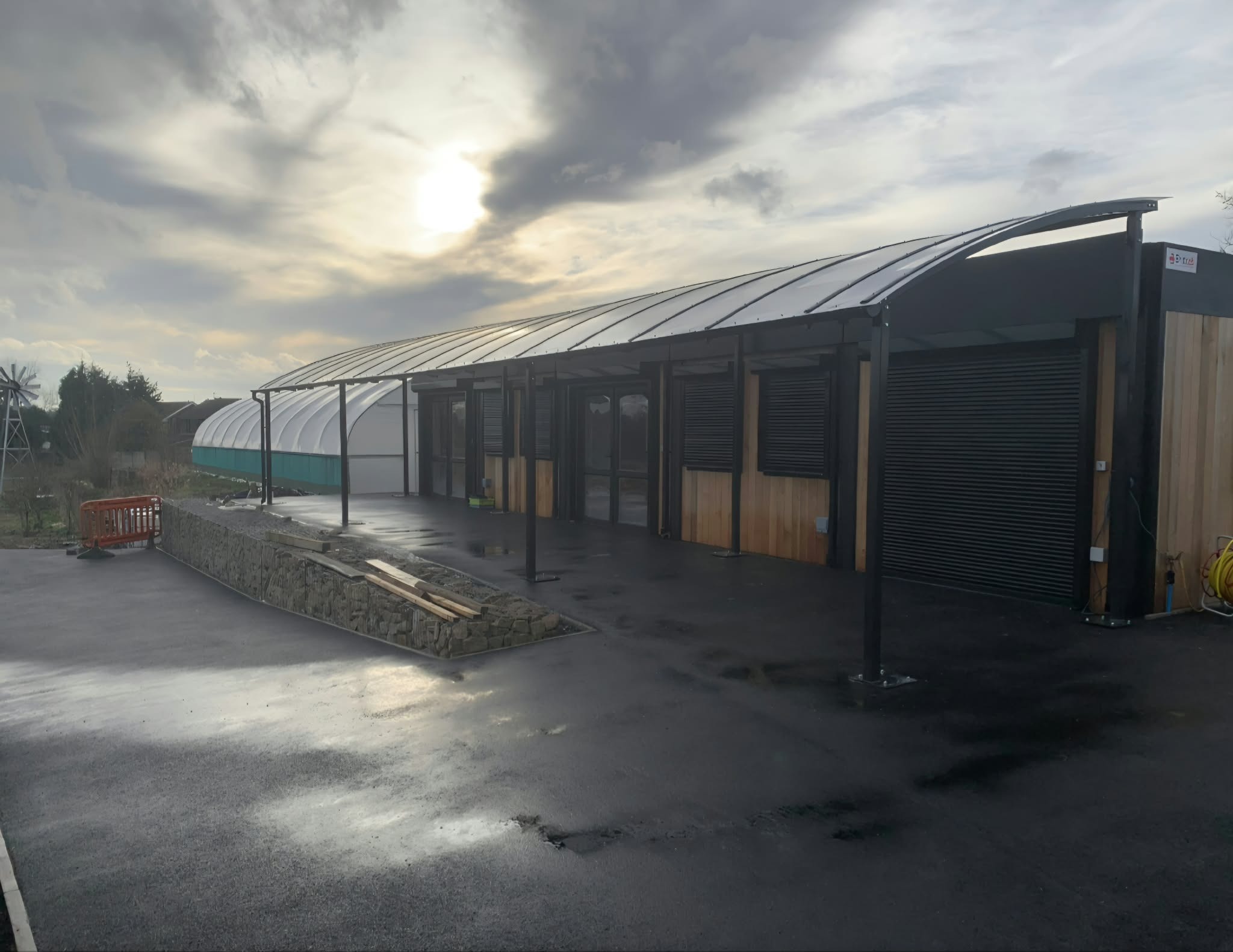

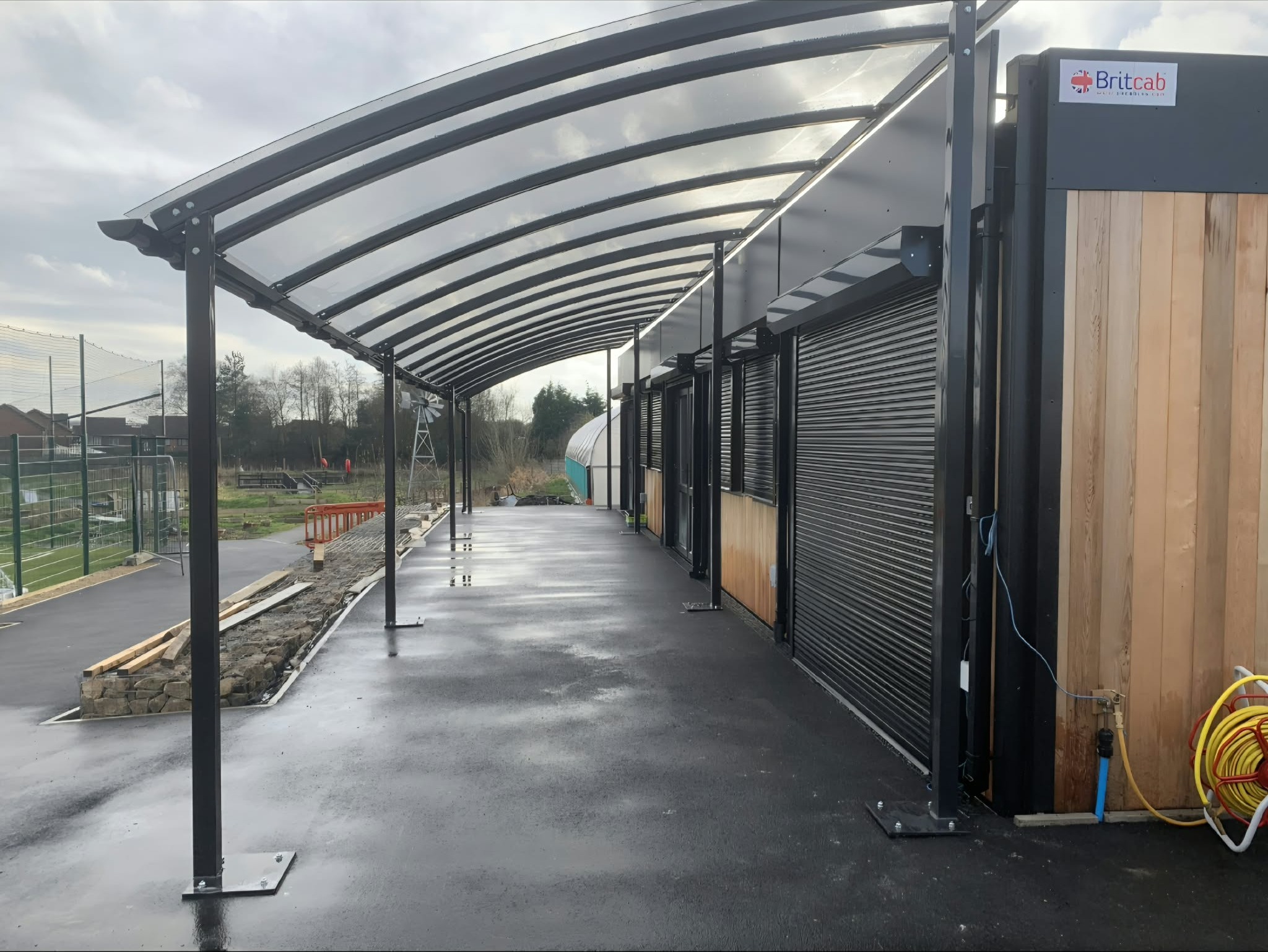

Covered walkways: recent projects
Real covered walkways we have designed, manufactured and installed, photographed on site.
Why choose Canopies & Shelters for covered walkways?
Canopies & Shelters sets out every covered walkway from a survey of the route itself: the doors it links, the fixing points along the way and where the water will run, with the frame, roof and drainage drawn up as one specification in CAD.
We work with schools and academy trusts, hospitals, industrial estates and retail parks, and we provide the CAD drawings, structural calculations and specification a procurement team needs for a tender or a business case. Every walkway is made to measure for the route, finished in any RAL colour, and delivered by our own labour and manufacture rather than subcontracted out.
Questions about covered walkways
What is another word for a covered walkway?
Covered walkways are also called walkway canopies, canopy walkways, linkways, covered links, linked canopies, sheltered walkways, covered outdoor walkways, or colonnades and cloisters. All describe a roofed, often open-sided route between buildings.
Can a covered walkway fix to an existing building?
Yes. Where the route runs alongside a building we can fix the walkway to a sound wall or slab, which avoids new foundations along that section. Where it crosses open ground it stands on its own posts and pad footings instead.
Do you install covered walkways for schools and hospitals?
Yes. We manufacture and install covered walkways for schools, hospitals, industrial sites and retail parks across the UK, with runs set out to link entrances, classroom blocks, drop-offs and car parks.
Designed and made in our own UK factory, supply and install, UK-wide.
Get a quote for a covered walkway
Send us a site plan, a photo or just a postcode, and our design team will come back with a drawing, a specification and a price for a covered walkway.
